BJ45W保溫截止閥適用于化工、化肥行業的管路上，夾套內涵入蒸汽能防止介質結晶。
應用規范
1、設計制造按GB12234-89 GB12234-89
2、結構長度按GB12221-89 GB12221-89
3、法蘭尺寸按JB/T79-94 JB/779-94
4、閥門檢查和試驗按GB13927
性能參數
|
型號 |
公稱壓力 |
試驗壓力 |
適用溫度 |
適用介質 |
保溫套壓力 |
|
Shell |
Seal |
|
BJ45W-25P |
2.5 |
3.75 |
2.75 |
≤200 |
乙酸尿素 |
≤1.3 |
|
BJ45W-40P |
4.0 |
6.0 |
4.4 |
|
BJ45W-64P |
6.4 |
9.0 |
6.6 |
乙酸尿素 |
|
BJ45W-25P |
2.5 |
3.75 |
2.75 |
|
BJ45W-40P |
4.0 |
6.0 |
4.4 |
|
BJ45W-64P |
6.4 |
9.0 |
6.6 |
主要零件材料
|
零件名稱 |
ZG1CR18NI9TI系列 |
ZGOOCR18NI10系列 |
ZG1Cr18Ni12MO2Ti系列 |
ZGOOCR17NI14MO2系列 |
WCB系列 |
|
閥體/閥蓋世 |
ZG1CR18NI9TI |
ZGOOCR18NI10 |
ZG1Cr18Ni12MO2Ti |
ZGOOCR17NI14MO2 |
WCB |
|
閘板 |
ZG1CR18NI9TI |
ZGOOCR18NI10 |
ZG1Cr18Ni12MO2Ti |
ZGOOCR17NI14MO2 |
1Cr13 |
|
閥桿 |
1CR18NI9TI |
00cr18ni10 |
1CR18NI12MOTI |
OOCR17NI14MO |
1Cr13 |
|
填料 |
PTFE紡織 |
PTFE紡織 |
PTFE紡織 |
PTFE紡織 |
石墨 |
|
墊片 |
304L+PTFE |
304L+PTFE |
316L+PTFE |
316L+PTFE |
石墨+304 |
|
壓蓋 |
ZG1CR18NI9TI |
ZG00CR18ni10 |
ZG1Cr18Ni12MO2Ti |
ZGOOCR17NI14MO2 |
WCB |
|
填料壓環 |
1CR18NI9TI |
00CR18NI10 |
1Cr18NI12MOTI |
OOCR17NI14MO |
1Cr13 |
|
螺栓 |
1cr17ni2 |
1CR17NI2 |
1Cr17NI2 |
1Cr17Ni2 |
35CrMoA |
|
螺母 |
1cr18ni9ti |
1CR18NI9TI |
1Cr18NI9ti |
1Cr18NI9ti |
45 |

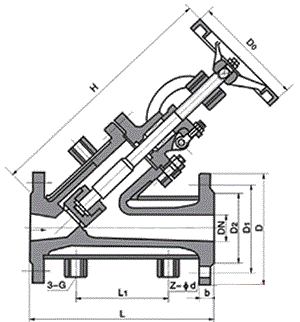

主要外形尺寸
|
PN(MPa) |
DN(mm) |
尺寸 |
重量
kg |
|
L |
L1 |
H |
3-G |
D |
D1 |
D2 |
b |
Z-φd |
Do |
|
2.5 |
15 |
200 |
50 |
210 |
1/2 |
105 |
75 |
55 |
16 |
4--φ14 |
120 |
14 |
|
20 |
220 |
50 |
240 |
1/2 |
115 |
85 |
65 |
16 |
4--φ14 |
140 |
18 |
|
25 |
220 |
50 |
250 |
1/2 |
135 |
100 |
78 |
18 |
4--φ18 |
160 |
25 |
|
32 |
250 |
55 |
270 |
1/2 |
145 |
110 |
85 |
18 |
4--φ18 |
160 |
30 |
|
40 |
270 |
60 |
310 |
1/2 |
160 |
125 |
100 |
20 |
4--φ18 |
160 |
36 |
|
50 |
300 |
60 |
330 |
3/4 |
180 |
145 |
120 |
22 |
8-φ18 |
240 |
40 |
|
65 |
350 |
65 |
360 |
3/4 |
195 |
160 |
135 |
22 |
8-φ18 |
240 |
54 |
|
80 |
380 |
70 |
400 |
3/4 |
230 |
190 |
160 |
24 |
8-φ23 |
280 |
70 |
|
100 |
430 |
75 |
480 |
1 |
270 |
220 |
188 |
28 |
8-φ25 |
320 |
100 |
|
125 |
490 |
80 |
550 |
1 |
300 |
250 |
218 |
30 |
8-φ25 |
360 |
130 |
|
150 |
570 |
90 |
620 |
1 |
330 |
280 |
248 |
32 |
12-φ25 |
360 |
170 |
|
200 |
690 |
95 |
750 |
1 |
395 |
340 |
302 |
36 |
12-φ25 |
400 |
250 |
|
4.0 |
15 |
200 |
50 |
210 |
1/2 |
105 |
75 |
55 |
16 |
4--φ14 |
120 |
14 |
|
20 |
220 |
50 |
240 |
1/2 |
115 |
85 |
65 |
16 |
4--φ14 |
140 |
18 |
|
25 |
220 |
50 |
250 |
1/2 |
135 |
100 |
78 |
18 |
4--φ18 |
160 |
25 |
|
32 |
250 |
55 |
270 |
1/2 |
145 |
110 |
85 |
18 |
4--φ18 |
160 |
33 |
|
40 |
270 |
60 |
310 |
1/2 |
160 |
125 |
100 |
20 |
4--φ18 |
160 |
41 |
|
50 |
300 |
60 |
330 |
3/4 |
180 |
145 |
120 |
22 |
8-φ18 |
240 |
45 |
|
65 |
350 |
65 |
360 |
3/4 |
192 |
160 |
135 |
22 |
8-φ18 |
240 |
62 |
|
80 |
380 |
70 |
400 |
3/4 |
230 |
190 |
160 |
24 |
8-φ23 |
280 |
80 |
|
100 |
430 |
75 |
480 |
1 |
270 |
220 |
188 |
28 |
8-φ25 |
320 |
100 |
|
125 |
490 |
80 |
550 |
1 |
300 |
250 |
218 |
30 |
8-φ25 |
360 |
130 |
|
150 |
570 |
90 |
620 |
1 |
350 |
295 |
258 |
34 |
12-φ30 |
360 |
185 |
|
200 |
690 |
95 |
750 |
1 |
415 |
355 |
315 |
40 |
12-φ34 |
400 |
268 |
|
